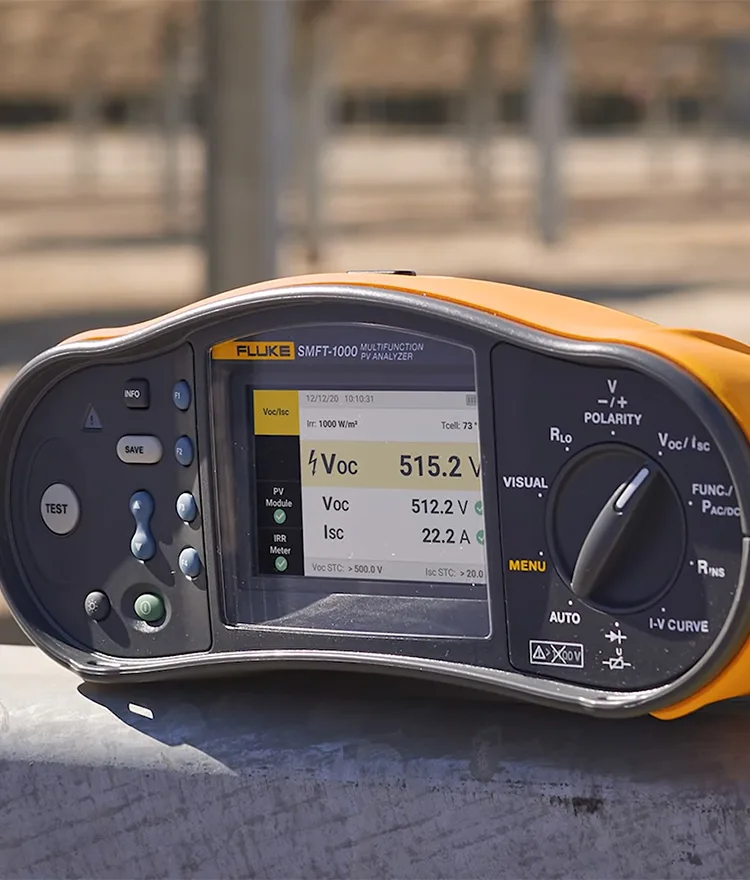

Fluke SMFT-1000 Pro Multifunction PV Tester & Performance Analyzer, I-V Curve Tracer

The Fluke SMFT-1000 Pro is designed for solar professionals who install, commission, and maintain PV systems up to 1000 V DC. Combining safety testing and I-V curve analysis in one rugged device, it ensures PV arrays operate safely and efficiently.

Key Benefits

• All-in-one PV test solution – verifies both safety and performance

• Safety Testing (IEC 62446-1 Category 1):

  • Earth resistance (RLO)

  • Open-circuit voltage (Voc) & polarity

  • Short-circuit current (Isc)

  • Insulation resistance (RINS)

• Performance Testing (IEC 62446-1 Category 2):
  • I-V curve tracing with real-time comparison to module specs
  • Irradiance, temperature, tilt & direction logging
• Wireless IRR2-BT irradiance meter – real-time data, 17-hour logging
• Auto Test Mode – one-button compliance sequences
• On-screen I-V curve display – instant performance confirmation
• Fluke TruTest™ software integration – fast reporting and data management
• Visual inspection recording – document PV site checks directly on device

Measurement Ranges

• DC Voltage (Voc): up to 1000 V

• DC Current (Isc): up to 20 A

• Insulation Resistance: up to 999 MΩ (at 50 V – 1000 V test voltages)

• AC/DC Voltage Measurement: up to 1000 V DC / 700 V AC

• AC/DC Current (with i100 clamp): up to 100 A

What’s Included

• Fluke SMFT-1000 PV Tester

• Fluke IRR2-BT wireless irradiance meter

• i100 AC/DC current clamp (100 A)

• Remote test probe, leads & accessories

• Professional tool backpack & carry case

• TruTest™ data management software (demo, upgradeable)

Fluke SMFT-1000 Pro – the complete testing solution for PV system safety and performance

Ideal for installers, commissioning teams, and O&M professionals.
