LENKENG-LKV379 HDMI Extender
LENKENG LKV379 HDMI Extender Over Coaxial Cable
290.00 Inc.VAT Add to cart

LENKENG LKV379 HDMI Extender Over Coaxial Cable

290.00 Inc.VAT

  • Transmission Distance Up to 100~700m
  • Coaxial Cable: RG6, RG7, RG11 etc
  • Supports One-To-Many &
    Many-to-Many System
  • 1080p

In Stock

SKU: LKV379 Category: Tags: , ,

LENKENG LKV379  HDMI Extender Over Coaxial Cable

The LENKENG LKV379 HDMI extender is designed to convert HDMI signal to HD digital TV signal based on DVB-T CATV transmission mode.

Being different from traditional analog CATV signal, it uses 64QAM mode to realize the HD signal to HD digital TV signal conversion and transmit via coaxial cables for long distance;It is easy to built one to multiple and multiple to multiple video matrix through CATV splitter.

With the advantages of good image quality, strong resistance to interference and hundreds channels available, it can be widely applied in CCTV, outer large screen, shopping mall advertisement, media education and digital KVM fields etc.

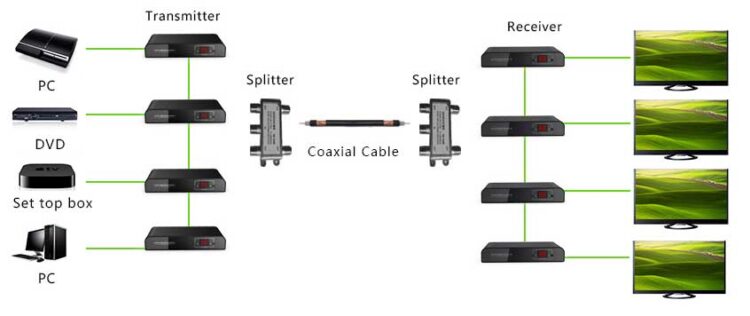

LENKENG-LKV379-connections-1

Features

  • LENKENG LKV379 applied the newest technology of video decode H.264 and converts HDMI signal to HD digital TV signal based on DVB-T CATV transmission mode and transmit over far distance bt RG6(75-5) cable.

  • It is easy to build one-to-many and many-to-many video matrix or one TX to one RX connection by using of CATV splitters

  • When transmitting a signal at 1080p resolution the CATV operating distance is 100 meters. Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.

  • Can be widely applied in CCTV, outer large screen, shopping mall advertisement, media education and digital KVM fields etc.

  • Transmission distance up to 100~700m

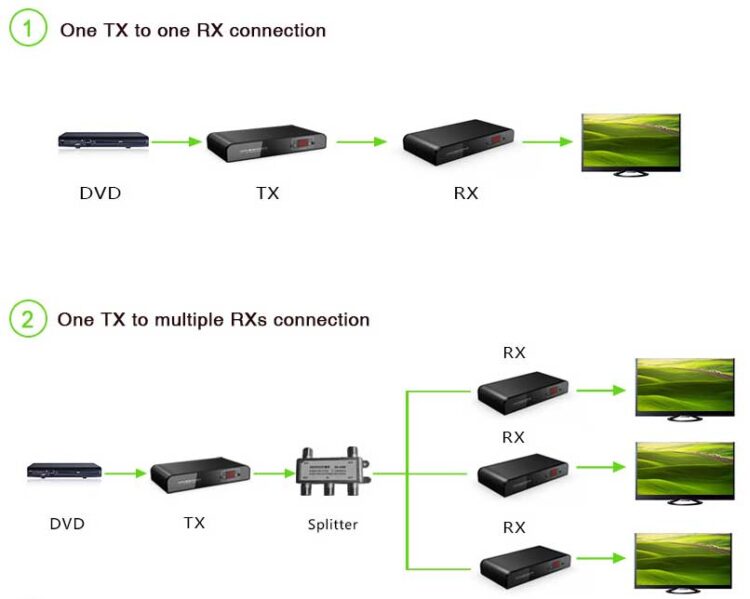

LENKENG-LKV379-connections-2

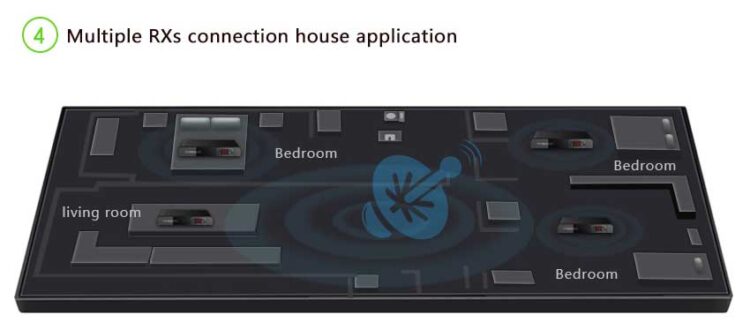

LENKENG-LKV379-connection-4
Specifications

Support input port480i@60Hz, 480p@60Hz??576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Support output port480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Support HDMI graphics resolutionUp to 1920×1080@60Hz
Video encodingH.264
Audio encodingMPEG2
Coaxial cableRG6, RG7, RG11 etc
Frequency point100-1000MHz
Transmission delay200ms
RF TX output consumption+0dbm
RF connectorimperial system (75 ohm Type F)
Power SupplyTX:<3.5W; RX:<3W
Dimensions 130x68x24mm




Notes:

1. This extender requires sender and receiver to work at the same time. One sender can work with several receivers in the LAN, so you can buy some receivers according to your needs.

2. Besides, according to CATV splitter, it is easy to build one to multiple and multiple to multiple video matrix.

3. If you need to create one-to-many system, please order more receivers

Package Contents:

1 X HDMI to RF Sender
1 X RF to HDMI Receiver
2 X 5V DC Power Supply adapter
1 X User Manual

Additional information

Brand

Model

LENKENG LKV379 HDMI Extender

Device Type

Input Ports

,

Output Ports

,

Resolution

, , ,

Supported Resolution

480i@60Hz, 480p@60Hz,
576i@50Hz, 576p@50Hz,
720p@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz

Power

5V DC

Power Consumption

TX:<3.5W
RX:<3W

Dimensions

130x68x24mm

Colour

Black
