LENKENG LKV383VGA VGA Extender with Audio Over IP CAT6
208.25 Inc.VAT Add to cart

LENKENG LKV383VGA VGA Extender with Audio Over IP CAT6

208.25 Inc.VAT

  • HDbitT Transport Protocol
  • Extend VGA & Analog Audio
    Over Single CAT5/5e/6 cable
  • Resolutions up to 1920×1080@60Hz
  • Transmit VGA Signal up to 120m
SKU: LKV383VGA Categories: , Tags: , ,

LENKENG LKV383VGA VGA Extender with Audio Over IP CAT6

LENKENG LKV383VGA VGA Extender with 3.5mm audio extends VGA signal and analog audio up to 394ft/120m over just one CAT6 cable. It saves cable cost and supports RGBHV signal input.

1.Point to Point Connection

LKV383VGA-VGA-Extender-connection2

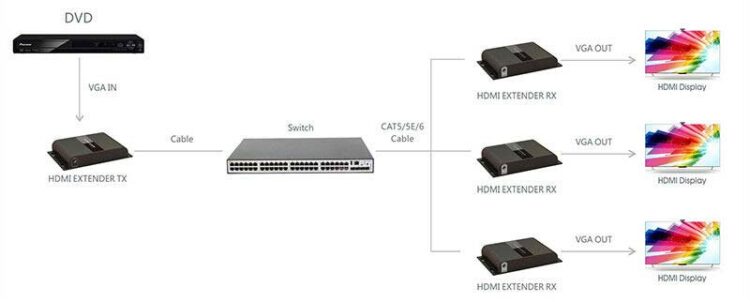

2.One-To-Many Connection
LKV383VGA-VGA-Extender-connection1


3.Router Connection

LKV383VGA-VGA-Extender-connection3

Features

-Apply advanced HDbitT transport protocol
-Extend VGA and analog audio over single CAT5/5e/6 cable
-Supports resolutions up to 1920×1080@60Hz>
-Transmit VGA signal up to 394ft/120m
-Support RGBHV input
-Support 3.5mm audio jack
-Cascade connection to split and extend VGA signal unlimitedly
-High-end aluminum alloy enclosure design


Items Specification

VGA signal format: RGBHV

Transport protocol: HDbitT

VGA resistance: 75Ω

Support Resolution:
1920×1080@60Hz;1680×1050@60Hz;1440×900@60Hz;1360×768@60Hz;1280×1024@60Hz;1280×960@60Hz;1024×768@60Hz;1280×720@60Hz;800×600@60Hz

Transmit Distance: Transmit 1080P signal over cat6 up to 120 meters, CAT5:80m, CAT5E:100m, CAT6:120m

It transmits up to 150meters over higher quality level network cable.

Audio: 3.5mm audio jack

Working temperature: 0℃~60℃

Power supply: DC5V/2A *2PCS

Power consumption: TX<7.5W RX<7W

Product Dimension: 138x90x23.8mm *2pcs

Weight: TX:215g RX: 215g

Color: Black

Additional information

Brand

Model

LKV383VGA – VGA over IP CAT6 Extender with Audio

Device Type

Interfaces

,

Resolution

,

Supported Resolution

1920×1080@60Hz;1680×1050@60Hz;1440×900@60Hz;
1360×768@60Hz;1280×1024@60Hz;1280×960@60Hz;
1280×720@60Hz;1024×768@60Hz;800×600@60Hz

Input Ports

, ,

Output Ports

, ,

Transmit Distance

Transmit 1080p signal over CAT6 up to 120m
CAT5 80m
It transmits up to 150m over higher quality network cable

Audio

Support 3.5mm audio jack

VGA Signal Format

RGBHV

Power Supply

DC5V/2A *2pcs

Power Consumption

TX<7.5W RX<7W

Working Temperature

0℃~60℃

Dimensions

138x90x23.8mm *2pcs

Weight

TX:215g / RX: 215g

Colour

Black
