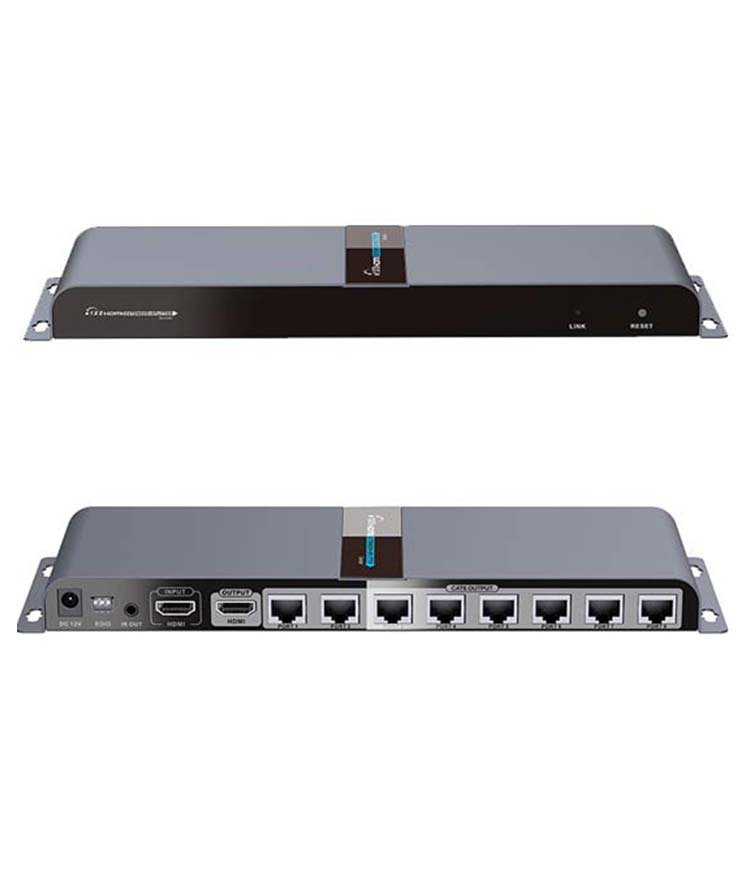

LENKENG LKV718PRO HDMI Extender Splitter

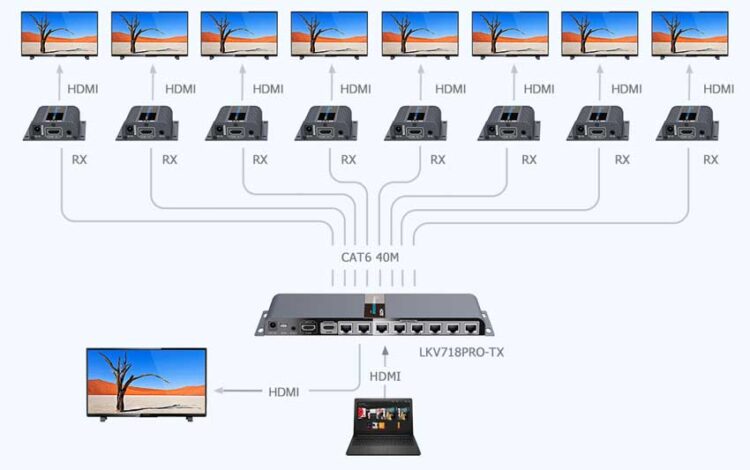

The LENKENG LKV718PRO HDMI extender splitter works with 8 HDMI CAT6 extender receivers to split and extend 1 HDMI source to 8HDMI displays over single CAT6/6a/7 cable up to 40m/131ft. The highest resolution supported is 1920×1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the receivers are powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect.
Applications
- Advertising: Airport waiting room, supermarket
- Public information display: Metro center, patient room, lobby, bank
- Conference: Meeting room with multiple screens
- Entertainment: Stadium studio
- Education: Multimedia room, multiple classes teaching
- Show: Exhibition room, museum
FEATURES
- Distribute 1 HDMI source to 8 HDMI displays over network cable
simultaneously. - Support one HDMI Loop-out.
- Compatible with CAT6/6a/7 network cables.
- The transmission distance is up to 40m/131ft.
- The highest resolution supported is 1920×1080@60Hz.
- Support 20~60Hz IR pass back.
- Support EDID Setting function.
- Support power from transmitter to receiver unit over the CAT6 cable.
- Plug and play.
- Wall-mounted function, easy installation.
| Item | Specifications |
| HDMI signal | HDMI1.3, Compatible with HDCP1.2 |
| Input | 1 x HDMI |
| Output | 8 x RJ45 |
| Support resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz> |
| Transmit distance | Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable |
| IR signal | Support 20~60kHz IR device |
| EDID | Support EDID setting function |
| Working temperature | 0℃～60℃ |
| Power supply | DC12V/3A |
| Power Consumption | <24W |
| Dimension | TX: 276(L) x 95.98(W) x 23(H) mm RX: 71.6×66.6×22.6mm |
| Color | Black |
