LENKENG LKV683 Matrix TX RX HDMI Extender

The LENKENG LKV683 Matrix includes a transmitter unit (TX) and a receiver unit (RX). It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf IGMP switch. It applied advanced HDbitT technology, the resolution supported is up to 4K×2K@30Hz ultra HD.

It can also used in a point-to-point connection, the distance is up to 120 meters. It is widely applied in digital signage advertisement, control room, command centers, entertainment and exhibition center, safety monitoring system, etc.

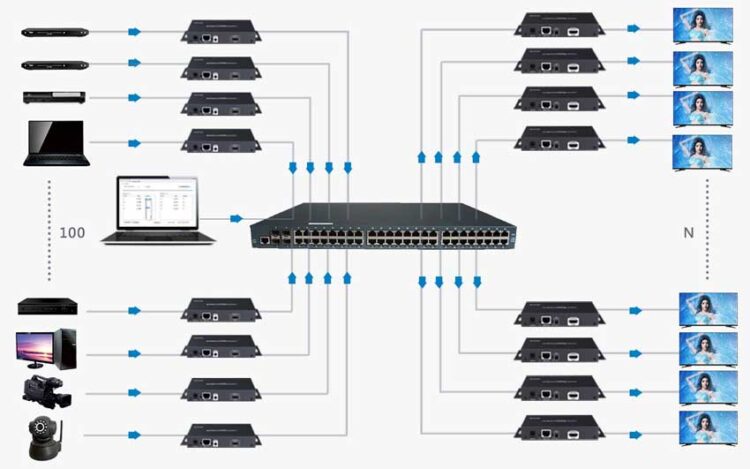

LENKENG LKV683 Matrix Configuration

Connected into an off-the-shelf IGMP switch, LKV683 Matrix supports max. 100pcs of transmitters to almost infinite number of displays.

LENKENG-LKV683-Matrix-connections

Applications

  • Digital signage content distribution for advertising, public information etc.
  • In-room entertainment systems
  • Operating room, command and control center etc.
  • Health Clubs

Network Bandwidth – 20M Only

Based on advanced HDbitT technlogy, when signals are transmitted over network, it only take up 20M bandwidth for each pair connected LKV683 Matrix or each one LKV683 Matrix transmitter unit.

NOTE: If there are many sets (or pairs) of LKV683 Matrix connected in system, the total bandwidth that can be taken up depends on the number of the transmitter unit only.

E.g: If 4 pcs of transmitters are used in your configuration, the bandwidth they would take up is 20Mx4=80M

Additional information

Brand

Model

LKV683 Matrix TX, LKV683 Matrix RX

Device Type

Input Ports

,

Output Ports

,

Resolution

, , , , ,

Resolution Supported

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
4Kx2K @24/25/30Hz

Power

5V/2A

Dimensions

164×107.6×23.6mm

Weight

TX: 320g
RX: 310g

Colour

Black
